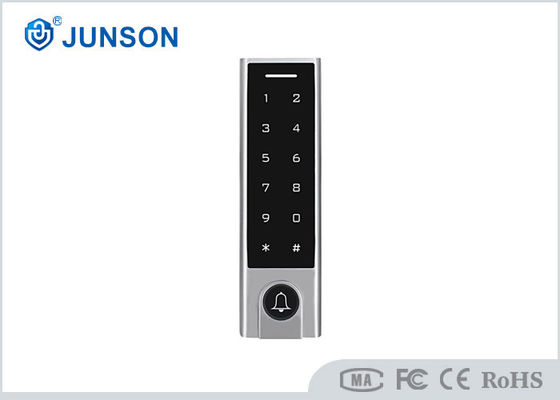

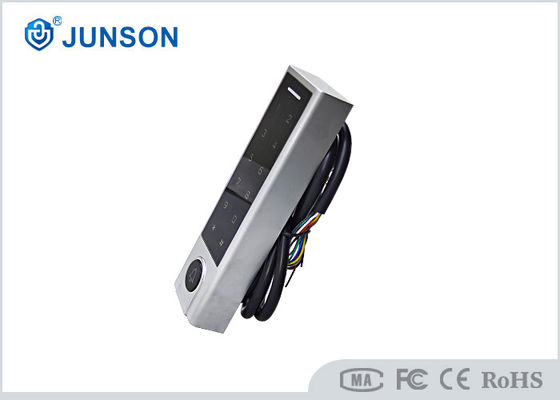

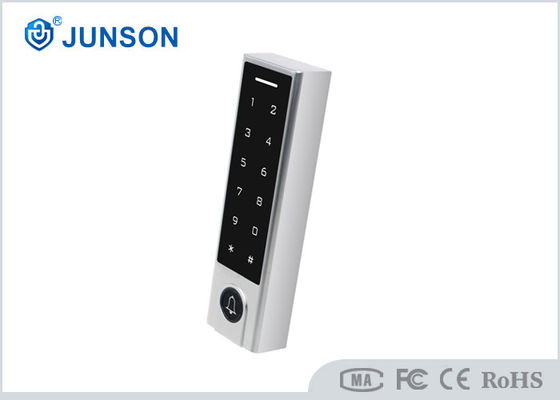

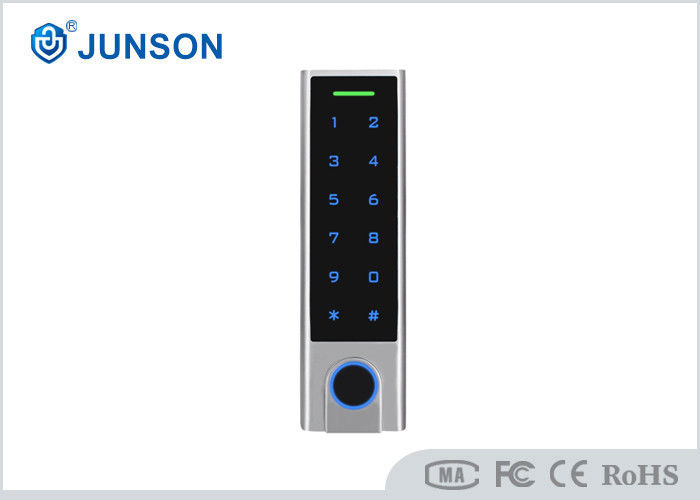

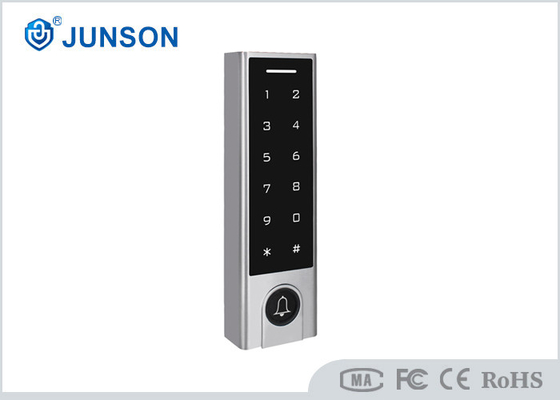

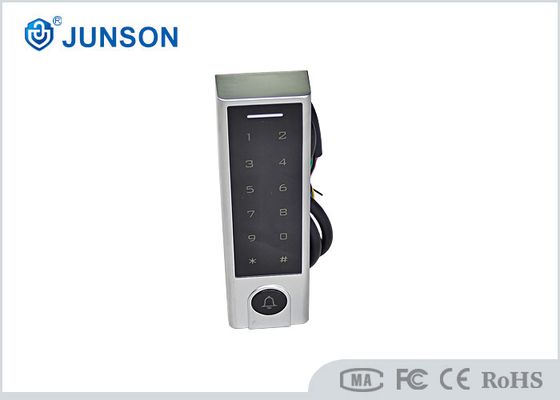

IP66 Zinc Alloy RFID Keypad 99S with Bluetooth and Tuya App for Smart Access Control
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | Junson |
| प्रमाणन: | CE/ROHS/FCC |
| मॉडल संख्या: | JS-T586-BT |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 5 पीसी |
|---|---|
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | कार्टन में पैक किया हुआ |
| प्रसव के समय: | भुगतान प्राप्त होने पर 5-7 दिन |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन, पेपैल |
| आपूर्ति की क्षमता: | 1000/पीसी/सप्ताह |
|
विस्तार जानकारी |
|||
| ब्रांड: | जूनन | आकार: | 148 मिमी * 43.5 मिमी * 22 मिमी |
|---|---|---|---|
| मोबाइल उपलब्ध: | आईओएस 7.0, एंड्रॉइड 4.3 से ऊपर | आवृत्ति दूरी: | 2 - 6 (सेमी) |
| वाटरप्रूफ रिटेक्शन: | आईपी66 | पिन लंबाई: | 4 - 6 अंक |
| संचालन आर्द्रता: | 0-98% | खुली दरवाजा विधि: | कार्ड, पासवर्ड, कार्ड+पासवर्ड |
| वोल्टेज: | 12वी - 18वी डीसी | लॉक आउटपुट लोड: | 2amp अधिकतम। |
| सामग्री: | जिंक मिश्र धातु खोल | ||
उत्पाद विवरण
Model: JS-T586-BT
Upgrade your security system with the 99S RFID Access Control Keypad, crafted with a durable zinc alloy body and built to withstand harsh outdoor environments. With an IP66 waterproof rating, this keypad delivers reliable performance in rain, dust, and extreme conditions.
Parameter List
| Dimension | 148mm * 43.5mm * 22mm |
| Weight | 0.45kg |
| Materials | Zinc Alloy Housing |
| Voltage | 12V - 18V DC |
| Current |
Open max current: 150mA Max Static current: 60mA max |
| IP rate |
IP66 |
| Operating Temp | -30℃ - 60℃ |
| Operating Humidity | 0-98% |
| Open door method | Card, password , card+password |
| Door relay time | 1-99S |
| Frequency distance |
6cm |
| Wiegand Interface | Build in Wg26-44 in & out |
| Wiring connections |
Relay output, Exit button, Alarm, Door Contact Wiegand in & out |
| PIN Length | 4 - 6 digits |
| Card type: |
EM or Mifare one card 125KHz / 13.56Mhz |
| Lock output load | 2Amp Max. |
| Colour: | Silver |
| User Capacity |
1000 users Common user: 988 Card / PIN Visitor Users: 10 Panic User: 2 |
Description:
-
Durable zinc alloy access control with IP66 waterproof rating.
-
Anti-vandal, waterproof, and backlit metal keys with a slim, elegant, and sturdy design.
-
Configurable unlock delay, unlock duration, and alarm delay for precise control.
-
Compatible with electric locks, alarms, door sensors, exit buttons, and doorbells for seamless access integration.
-
Supports Wiegand input/output, works with card readers or as a standalone card reader with a control board.
-
Easy programming and user-friendly operation.
-
Supports management card setup for secure access control.
-
Password length: 4–6 digits.
-
Touchscreen design with backlit highlights for enhanced usability and aesthetics.
-
Works with magnetic locks, electric locks, exit buttons, door sensors, bells, sirens, and slave card readers for complete access control solutions.
