No Pole Sturdy Small New Designed Electric Cabinet Lock
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | Junson |
| प्रमाणन: | CE/FCC |
| मॉडल संख्या: | जेएस-3051एस |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 5pcs |
|---|---|
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | कार्टन में पैक किया हुआ |
| प्रसव के समय: | अपना भुगतान प्राप्त करने के बाद 2-7 कार्य दिवस |
| भुगतान शर्तें: | टी/टी, पेपैल या पश्चिमी संघ अग्रिम में |
| आपूर्ति की क्षमता: | प्रति माह 5000 पीसी |
|
विस्तार जानकारी |
|||
| ताला आयाम: | 73एल*56डब्ल्यू*13एच (मिमी) | हुकर की लंबाई: | 26 मिमी, 29 मिमी वैकल्पिक हुकर |
|---|---|---|---|
| सामग्री: | स्टील हाउसिंग / फाइन कॉपर कॉइल | कार्य -प्रकार: | बिजली बंद होने पर सुरक्षित / बंद हो गया |
| वोल्टेज: | 12V / 24V डीसी (अनुकूलित) | कार्यशील मुद्रा: | 2ए/1ए |
| वज़न: | 0.17 किग्रा / पीसी | पैकिंग: | 100pcs/कार्टन |
| प्रमुखता देना: | sturdy electric cabinet lock,small electric cabinet lock,no pole electric cabinet lock |
||
उत्पाद विवरण

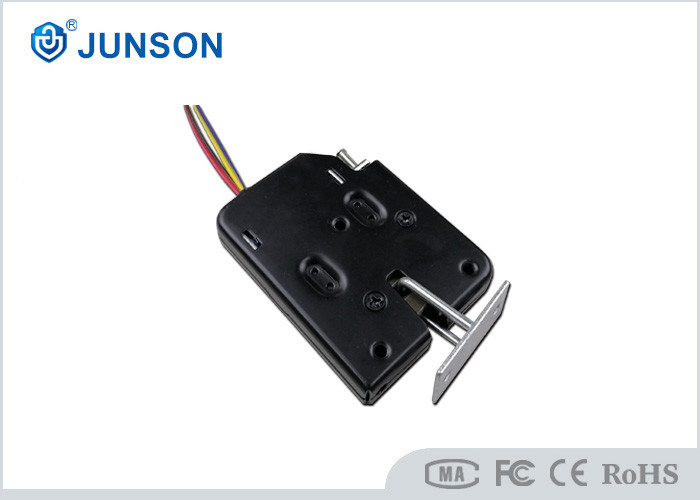

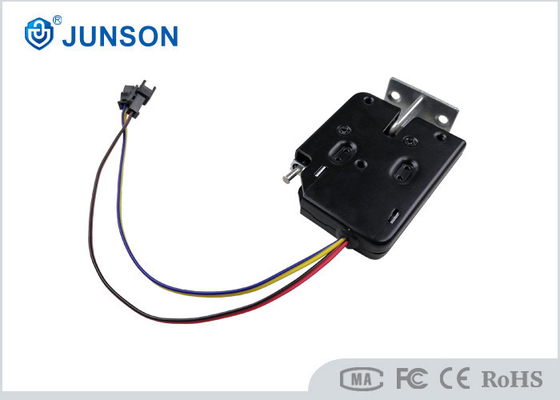

No Pole Sturdy Small New Designed Electric Cabinet Lock
Mini No Pole Electric Cabinet Lock
Model: JS-3051S
This upgraded electronic lock delivers safe, reliable protection for cabinets, drawers and any storage unit. Its reinforced latch generates greater locking strength, reliably resisting knocks or external pressure to stop the lock from popping open unintentionally.
Parameter List:
| Lock Dimension | 73L*56W*13H (mm) |
| Hooker length | 26mm, 29mm optional hooker |
| Working Type | Fail secure / locked when power off |
| Materials: | Steel housing / fine copper coils |
| Voltage | 12V / 24V DC (customized ) |
| Working Current: | 2A / 1A |
| Open time | Within 1S |
| Continue power on | ≦10S |
|
Signal out |
NO/COM |
| Available | All kinds of Cabinet |
| Weight: | 0.17kg/pcs |
| Packing: | 100pcs/ carton |
| Carton size: | 35L*35W*15H (cm) |
Main Feature:
1. High-strength steel, and fine copper coils, durable
2. Small Volume, light weight, Less power consumption, Easy installation
3. Available for any kind of cabinet, file box.
4. Continues electrify no longer than 10S, to prevent the burn the coil
5. With small with connector, and 20mm wires, easy to connect to the control board.
6. Workable with access control, remote control or special access control power.
7. Metal housing, easy to install in the cabinet door.
8. With Emergency open switch hidden, can open by hand in emergency condition
9. Safety, bolt’s holding force at 150kg
10. Flick the door auto. With adjustment spring, can open the 0.5-4kg door automatic.
Lock Dimension:
Hooks model we can options:
FAQ:
